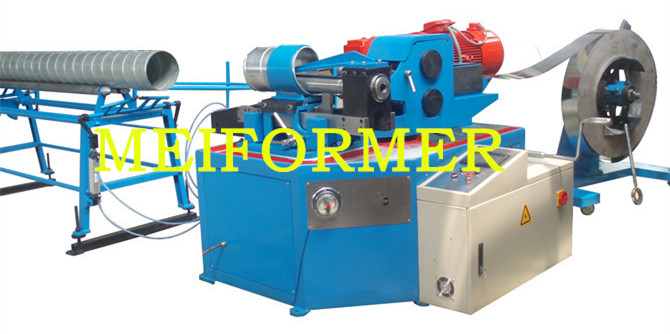

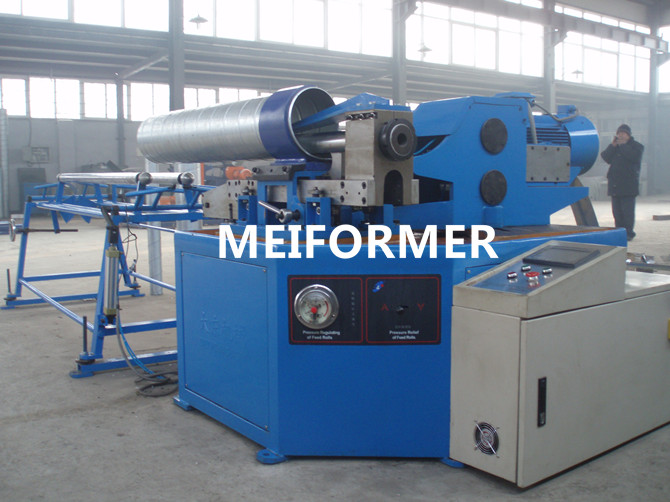

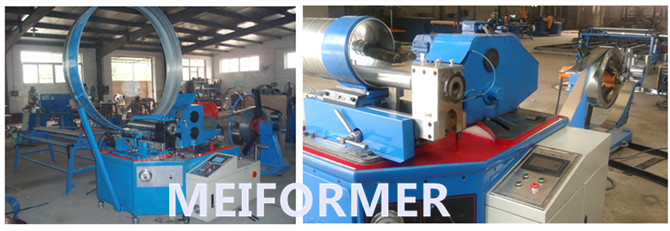

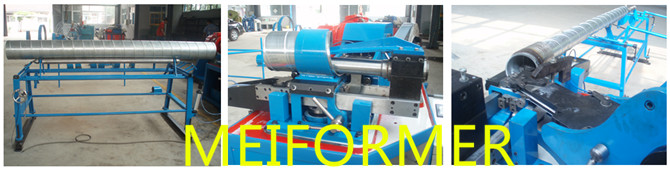

Spiral Tubeformer (Tool Model) 1500
Spiral Tubeformer (Tool Model) Spiral tubeformer also called spiral machine, by forming the mold design, molding to ensure standardization, easy to install. Formed to ensure efficient high-quality sealing seams and high-quality sealing seams and high strength. Replacement of mold and easy operation, fast. Cutting Size can choice Roller shear, Plasma Cutting or saw cutting.
Model
MDL-1.2-1500 A
Tube Diameter
Ф100-Ф1500mm
Material width
137mm
Material thickness
galvanized steel:0.5-1.2mm
Stainless steel:0.5-1.0mm
Decoiler
inner coil: Ф460-520mm
Max. loading:1200kg
The decoiler is drove by a miniature motor on the slide to adjust feeding angle .
Seam lock
the surface of ducts
Feeding speed
0-37m/min,adjustable
Cutter
roller shear (no burr)
Driven System
Cutting and turning flange adopt air-power
Compaction of feed rolls adopts hydraulic power
Mould
Steel
Total weight
1800kg
Diameter
Main machine：2000x1600x1400m m
Run out table:2100x1000x800 mm
Power:
Total power 16KW.
main motor:15kw,
Hydraulic motor:0.75kw,
Seam locking wheel motor:0.12kw
Electrical source:
380V/50Hz/3ph (or by customer requirement.)
Console
Touch screen and push buttons panel
